Customized Size 5052 H112 Aluminum Bar

Grade: 5052

Temper: H112

Diameter: 4.0mm-560mm


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    5052 AL-Mg aluminum rod is the most widely used anti-rust aluminum,This alloy has a high strength, especially for its fatigue resistance strength:High plasticity and corrosion resistance, can not be strengthened by heat treatment, in the semi-cold hardening when good plasticity, cold hardening when low plasticity, good corrosion resistance, good weldability, poor cutting performance, can be polished.

    5052 Aluminum rod is mainly used for demanding high plasticity and good weldability,Low-load parts operating in a liquid or gaseous media,Such as mailboxes, gasoline or lubricant catheters, various liquid containers and other small load parts made with deep pull:Wire material is used for rivets. It is also commonly used in traffic vehicles, ships, sheet metal parts, meters, street lamp supports and rivets, hardware products, electrical shell and so on.

    Aluminum Bar is lightweight, ductile, conductive, and recyclable. With these properties, Aluminum bar can be used in different industries, such as aerospace, automobile, construction, and transportation.

    ✧ Mechanical Properties

    Tensile Strength Yield Strength Hardness
    170 ~305 Mpa σ0.2(MPa)≥65 120 ~ 160HB

    ✧ Product Specification and Size

    Standard Specification: GB/T 3880, ASTM B209, EN485

    Alloy and Temper
    Alloy Temper
    1xxx: 1050, 1060, 1100 O, H12, H14, H16, H18, H22, H24, H26, H28, H111
    2xxx: 2024, 2219, 2014 T3, T351, T4
    3xxx: 3003, 3004, 3105 O, H12, H14, H16, H18, H22, H24, H26, H28, H111
    5xxx: 5052, 5754, 5083 O, H22, H24, H26, H28, H32, H34, H36, H38, H111
    6xxx: 6061, 6063, 6082 T4, T6, T451, T651
    7xxx: 7075, 7050, 7475 T6, T651, T7451

    ✧ Temper Designation

    Temper Defintion
    O Annealed
    H111 Annealed and slightly strain hardened (less than H11)
    H12 Strain Hardened, 1/4 Hard
    H14 Strain Hardened, 1/2 Hard
    H16 Strain Hardened, 3/4 Hard
    H18 Strain Hardened, Full Hard
    H22 Strain Hardened and Partially Annealed, 1/4 Hard
    H24 Strain Hardened and Partially Annealed, 1/2 Hard
    H26 Strain Hardened and Partially Annealed, 3/4 Hard
    H28 Strain Hardened and Partially Annealed, Full Hard
    H32 Strain Hardened and Stabilized, 1/4 Hard
    H34 Strain Hardened and Stabilized, 1/2 Hard
    H36 Strain Hardened and Stabilized, 3/4 Hard
    H38 Strain Hardened and Stabilized, Full Hard
    T3 Solution heat-treated, cold worked and naturally aged
    T351 Solution heat-treated, cold worked, stress-relieved by stretching and naturally aged
    T4 Solution heat-treated and naturally aged
    T451 Solution heat-treated, stress-relieved by stretching and naturally aged
    T6 Solution heat-treated and then artificially aged
    T651 Solution heat-treated, stress-relieved by stretching and artificially aged

    ✧ Available Size Range

    Dimesion Range
    Thickness 0.5 ~ 560 mm
    Width 25 ~ 2200 mm
    Length 100 ~ 10000 mm

    Standard Width and Length: 1250x2500 mm, 1500x3000 mm, 1520x3020 mm, 2400x4000 mm.
    Surface Finish: Mill finish (unless otherwise specified), Color Coated, or Stucco Embossed.
    Surface Protection: Paper interleaved, PE/PVC filming (if specified).
    Minimum Order Quantity: 1 Piece For Stock Size, 3MT Per Size For Custom Order.

    ✧ Available Size Range

    Aluminum bar is used in various applications, including aerospace, military, transportation, etc. Aluminum bar is also used for tanks in many food industries, because some aluminum alloys become tougher at low temperatures.

    Type Application
    Food Packaging Beverage can end, can tap, cap stock, etc.
    Construction Curtain walls, cladding, ceiling, heat insulation and venetian blind block, etc.
    Transportation Automobile parts, bus bodies, aviation and shipbuilding and air cargo containers, etc.
    Electronic Appliance Electrical appliances, telecommunication equipment, PC board drilling guide sheets, lighting and heat radiating materials, etc.
    Consumer Goods Parasols and umbrellas, cooking utensils, sports equipment, etc.
    Other Military, color coated aluminum sheet

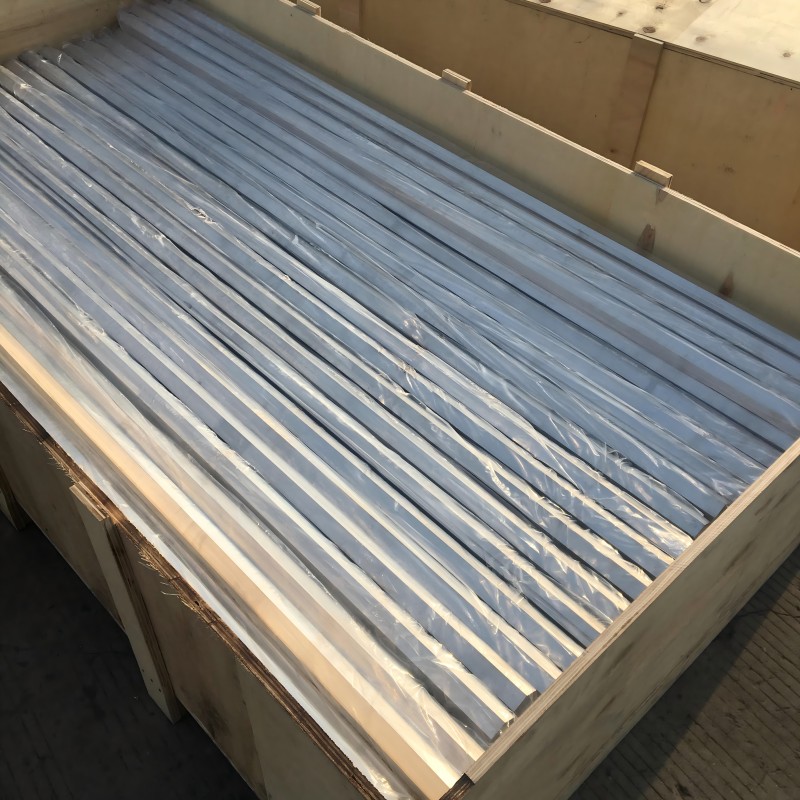

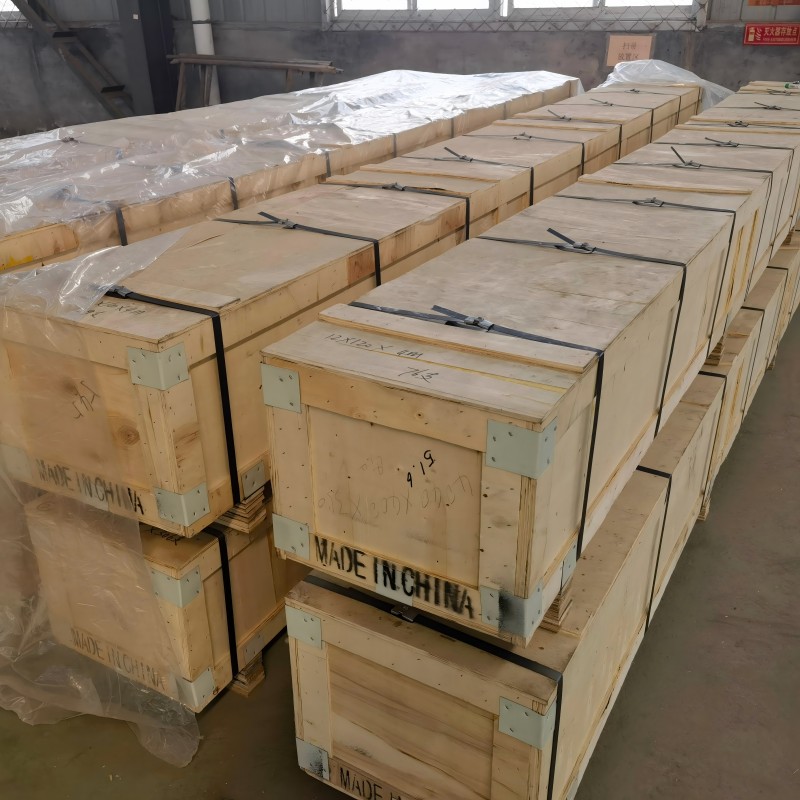

    ✧ Aluminum Plate Packaging

    packing
    Aluminum Bar
    Aluminum Bar
    packing3
